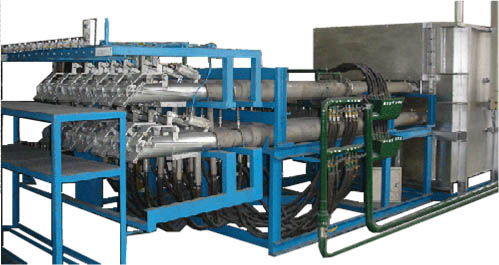

新型十四管爐
Model fourteen tube furnace
一、主要性能說明(The main performance specification)
新型十四管爐適用于氧化鎢、氧化鉬等材料的還原。溫控系統采用SCR控制；推舟系統采用機械推舟及PLC生產過程可編程控制；爐體耐火材料采用特殊設計,能提高能源利用；配備報警系統及氫氣回收系統。十四管爐適用于中、粗顆粒還原用。
Reduction of model fourteen tube furnace is suitable fortungsten oxide, molybdenum oxide material. Temperature control system adopts SCR control system; make by mechanical pusher and theproductionprocessofPLCprogrammable control; special design furnace refractory material, can improve energy utilization; equipped with an alarm system and hydrogen recovery system. In thecoarse particle reduction, with fourteen tube furnace.
二、主要技術參數(Main technical parameters)
品名name of a part：新型十四管爐Model fourteen tube furnace
品號article number ：YC3021
爐管尺寸 Furnacetubesize (mm)：Φ140/Φ128*10000
功率power：96kw
工作溫度working temperature：1050℃
*高溫度 maximum temperature ： 1150℃
爐子重量The weight:約35T
外形尺寸 Dimensions (mm):8100*1750*2750
