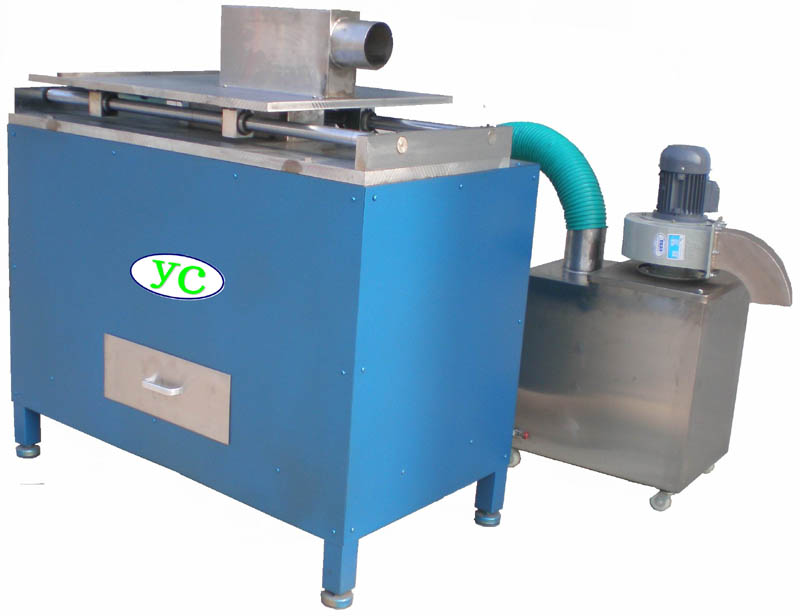

修型專用長度切斷機
一、主要性能說明(The main performance specification)
修型專用長度切斷機是硬質合金修型板材、棒材專用切斷、切割設備。采用特殊處理臺面,耐磨不易變形；采用高精度配件,切削精度高,可批量切斷棒材；采用全不銹鋼粉塵收集箱,無污染,回收的粉料可以二次利用。
Fixthe special length cuttingmachineis hardalloy plate,rod repair specialcut-off, cutting equipment. Using special treatment table, wear not easy deformation; using high precision parts, high cutting precision, batch cuttingbar; adopts stainless steel dust collection box, no pollution, powder recovery can utilize two times.
二、主要技術參數 (Main technical parameters)

產品代號Product code：YC2041
外形尺寸outline dimension：1.1*0.61*1.2m
*大切斷厚度The maximum cutting thickness：42mm
*大切斷長度The maximum cutting length：500mm
切片規格Section size：φ200mm
工作臺尺寸bed dimension：760*610mm
端面精度Surface accuracy：±0.1mm
功率power：1.5kw
